🏗️ Protocol Architecture

This yield optimization protocol combines smart contract-based vaults with an AI agent and Chainlink Automation to intelligently allocate funds based on market conditions and user risk preference.

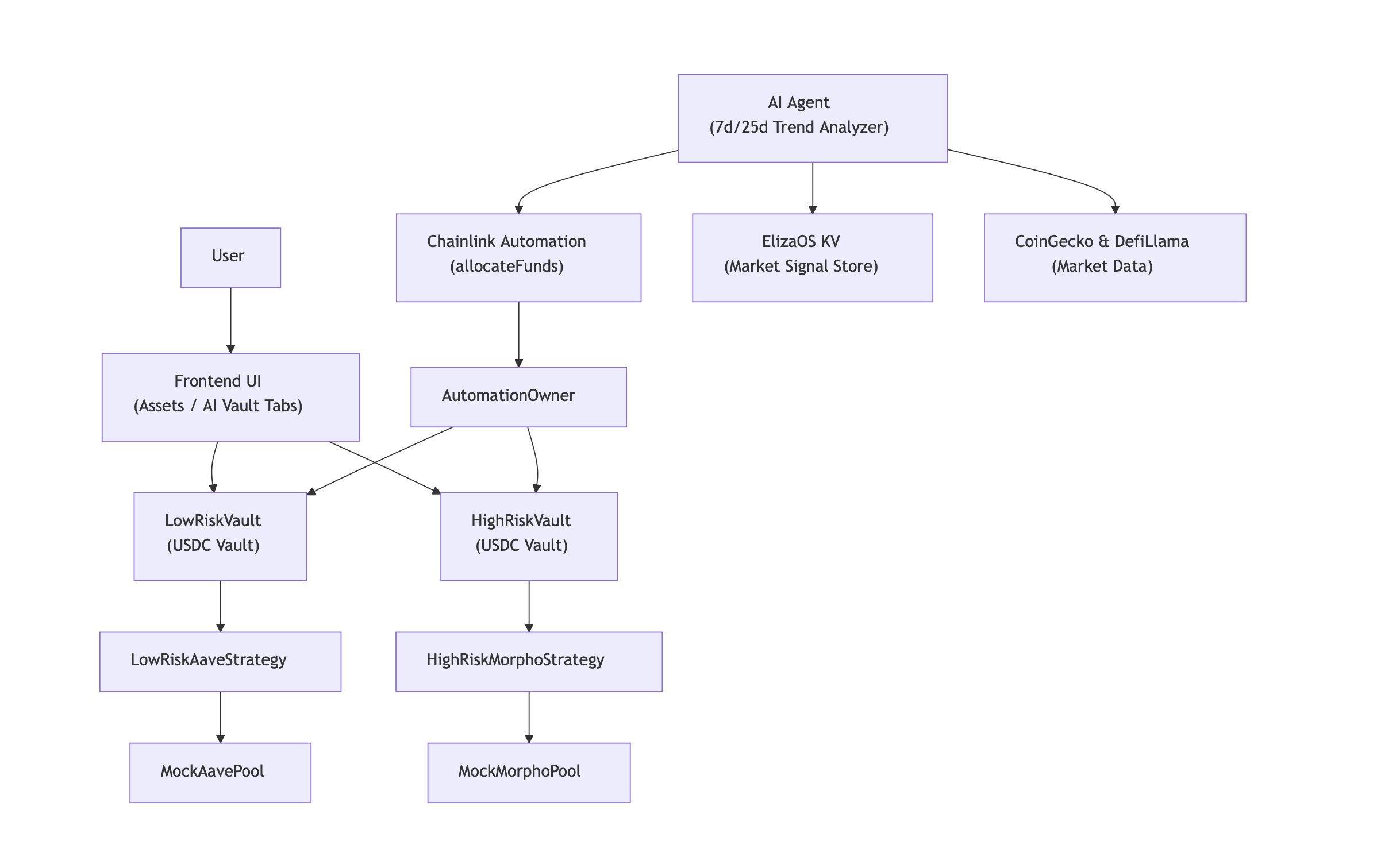

🖼️ System Diagram

Protocol Architecture

🧩 Components

👤 User

  • Interacts via a simple Frontend UI.
  • Can view balances and deposit into AI-driven vaults.

💻 Frontend UI

  • Contains two main tabs:

  • Assets – view deposits, APY, etc.

  • AI Vault – deposit into Low or High risk vaults.

🤖 AI Agent (ElizaOS Plugin)

  • Uses 7-day and 25-day market trend analysis.

  • Fetches DeFi data from:

  • CoinGecko (price history)

  • DeFiLlama (APYs, TVLs)

  • Stores chosen strategy in ElizaOS KV Store.

  • Periodically or immediately calls allocateFunds() on the vaults.
  • Triggers allocation only if AI agent has posted a valid strategy in ElizaOS KV.

🔐 AutomationOwner Contract

  • Trusted controller that mediates access from Chainlink Automation to YVault.
  • Ensures only secure, scheduled execution of allocation logic.

🏦 Vaults

Two Yearn V2-style vaults:

  • LowRiskVault — interacts with Aave-based strategy.
  • HighRiskVault — interacts with Morpho Blue strategy.

📊 Strategies

  • LowRiskAaveStrategy → invests in a mocked Aave USDC pool.
  • HighRiskMorphoStrategy → invests in a mocked Morpho Blue pool.
  • Strategies are modular and upgradable by governance.

🔁 Fund Flow Summary

  1. User deposits USDC into either vault.
  2. AI Agent selects optimal pool based on market signal.
  3. Result is stored in ElizaOS KV (off-chain).
  4. Chainlink Automation triggers fund allocation via AutomationOwner.
  5. Funds are routed from the vault into the selected strategy.
  6. Strategy contract executes on the corresponding protocol (mocked for testing).
